Price range: $769.00 through $789.00

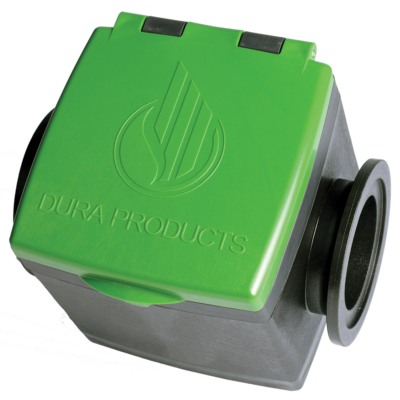

Featuring an impact-resistant Lexan™ faceplate, the 1″ High-Flow Dura-Meter™ is engineered to handle tough conditions. Moreover, it consistently performs in even the harshest environments. Made in America, the 1″ Full Port industry M100 Manifold Flanged Dura-Meter™ with 100% moisture-sealed circuitry makes the meter impervious to water intrusion.
Additionally, this 1″ High-Flow meter can be calibrated to achieve + / – 0.5% accuracy, thereby significantly reducing Straight Inlet / Outlet requirements. The (2) 9V batteries provide power that allows you to stay in the field longer. The Lexan faceplate is over-molded with Santoprene and filled with gel to improve shock resistance.

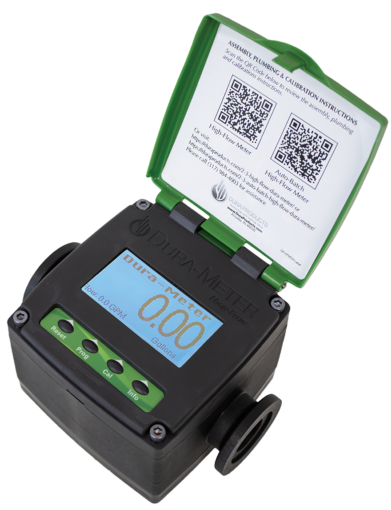

The 1″ High-Flow Dura-Meter™ uses an industry leading menu driven backlit display, making it the easiest of all chemical meters on the market to use in all light conditions. It has a full port flow with 1″ M100 manifold flanges. Furthermore, the 1″ High-Flow Dura-Meter™ not only offers an impressive array of features but also includes a standard 2-Year Maintenance Program and warranty. Consequently, it delivers long-term reliability and peace of mind. It is available with EPDM, Viton® or Silicone seals.
For more information, visit https://duraproducts.com/2-3-high-flow-dura-meter/
Firstly, check calibration before use. Learn how here.
Also now available with Auto-Batch™ functions.
Call our office for Promotions 317-877-7867
Operating Temp: 32 degrees F to 140 degrees F
Flow Rate: 10 to 100 GPM
Size / Connection: 1″ M100 Flange
Meter Accuracy: + / – 0.5%
Backlit Display: Yes
Meter Type / Style: Paddlewheel
Body Materials: GF Polypropylene; EPDM, Viton® or Silicone Seals
EPDM seals are good in steam applications and offer excellent chemical resistance to a variety of acids and alkalines. Fairly good in ketones and alcohols. Not recommended for use in applications involving petroleum oils, strong acids, or strong alkalines. They have exceptionally good weather aging and ozone resistance. Temperature rating is from -20ºF to +225ºF (250ºF intermittent service).
Viton® seals have excellent chemical resistance. They can be used in most applications involving mineral acids, salt solutions, chlorinated hydrocarbons and petroleum oils. They are particularly good in hydrocarbon service. Not suitable for steam or hot water service. Temperature rating is from -20°F to +300°F.
Silicone seals are recommended for the following products: Accord®, Accord® XRT II, Ammonium Sulfate, Duramax®, Durango®, Enlist Duo®, Garlon® 3A, Instinct®, Intimidator®, Keystone®, Keystone® LA, Matador®, Resicore®, SureStart®, SureStart® II, Surpass® EC
