Original price was: $3,165.00.$3,031.00Current price is: $3,031.00.

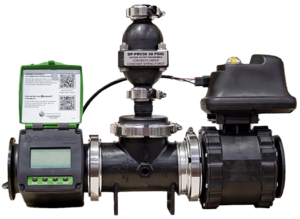

2″ & 3″ High-Flow Dura-Meter™
Special Features for Auto-Batch™ High-Flow Meter
Customer should always check calibration before use.
| Weight | 15 lbs |
|---|---|
| Dimensions | 22.75 × 14.5 × 10.5 in |
| Seal Type |
Operating Temp: 32 degrees F to 140 degrees F
Flow Rate: 40 to 300 GPM
Size / Connection: 2″ M220 Flange
Meter Accuracy: + / – 0.5%
Backlit Display: Yes
Meter Type / Style: Paddlewheel
Body Materials: GF Polypropylene; EPDM or Viton® Seals
EPDM seals are good in steam applications and offer excellent chemical resistance to a variety of acids and alkalines. Fairly good in ketones and alcohols. Not recommended for use in applications involving petroleum oils, strong acids, or strong alkalines. They have exceptionally good weather aging and ozone resistance. Temperature rating is from -20ºF to +225ºF (250ºF intermittent service).
Viton® seals have excellent chemical resistance. They can be used in most applications involving mineral acids, salt solutions, chlorinated hydrocarbons and petroleum oils. They are particularly good in hydrocarbon service. Not suitable for steam or hot water service. Temperature rating is from -20°F to +300°F.
