3″ High-Flow Dura-Meter™

$1,230.00

Description

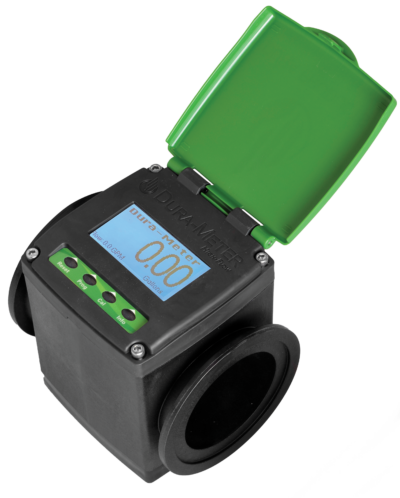

3″ High-Flow Dura-Meter™

The 3″ High-Flow Dura-Meter™ is made of impact resistant Lexan™ faceplate, so it holds up to the harshest environments. Made in America, the 3″ Full Port industry standard Manifold Flanged Dura-Meter™ with 100% moisture-sealed circuitry makes the meter impervious to water intrusion.

This 3″ High-Flow meter can be calibrated to achieve + / – 0.5% accuracy and significantly reduce Straight Inlet / Outlet requirements.  The (2) 9V batteries provide power that allows you to stay in the field longer. The Lexan faceplate is over-molded with Santoprene and filled with gel to improve shock resistance.

The 3″ High-Flow Dura-Meter™ uses an industry leading menu driven backlit display, making it the easiest of all chemical meters on the market to use in all light conditions.  It has a full port flow with industry standard 3″ port manifold flanges. In addition to the rich features, a 2 Year Maintenance Program and warranty come standard. It is available with EPDM, Silicone, and Viton® seals.

        • Intuitive menu-driven backlit display
        • Impact resistant Lexan™ faceplate
        • 100% moisture sealed circuitry
        • Accuracy +/- 0.5%
        • 3″ Full Port Manifold flanged meter body
        • Multiple plumbing options
        • Includes a 2-year Warranty & Maintenance Program
        • 100% moisture-sealed circuitry
        • Extended battery life with use of (2) 9V batteries
        • Displays batch and total volume
        • Gallons / Liters flow rate measurement
        • Paddlewheel Meter
        • Available in EPDM, Viton, or Silicone options

For more information, visit https://duraproducts.com/2-3-high-flow-dura-meter/

3″ HIGH-FLOW DURA-METER™  ASSEMBLY VIDEO

Customer should always check calibration before use. Call our office for Promotions 317-877-7867

Additional information

Weight 6 lbs
Dimensions 13 × 13 × 11 in
Seal Type

, ,

Specifications

Operating Temp: 32 degrees F to 140 degrees F


Flow Rate: 80 to 700 GPM


Size / Connection: 3″ M300 Flange


Meter Accuracy: + / – 0.5%


Backlit Display: Yes


Meter Type / Style: Paddlewheel


Body Materials: GF Polypropyl; EPDM, Viton® or Silicone Seals

EPDM / Viton / Silicone Seals

EPDM seals are good in steam applications and offer excellent chemical resistance to a variety of acids and alkalines. Fairly good in ketones and alcohols. Not recommended for use in applications involving petroleum oils, strong acids, or strong alkalines. They have exceptionally good weather aging and ozone resistance. Temperature rating is from -20ºF to +225ºF (250ºF intermittent service).

Viton® seals have excellent chemical resistance. They can be used in most applications involving mineral acids, salt solutions, chlorinated hydrocarbons and petroleum oils. They are particularly good in hydrocarbon service. Not suitable for steam or hot water service. Temperature rating is from -20°F to +300°F.

Silicone seals are recommended for the following products:  Accord®, Accord® XRT II, Ammonium Sulfate, Duramax®, Durango®, Enlist Duo®, Garlon® 3A, Instinct®, Intimidator®, Keystone®, Keystone® LA, Matador®, Resicore®, SureStart®, SureStart® II, Surpass® EC
